Large Electric Steam Boiler Noiseless Running Energy Saving Environmental Friendly

Product Categories
Zhangjiagang Wilford Thermal Co.,Ltd.
Contact Now

Large Electric Steam Boiler Noiseless Running Energy Saving Environmental Friendly

  • 1
  • 2
  • 3

Brand Name : WILFORD

Model Number : WDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Packing in wooden box

Style : Horizontal

Fule : Electric heating

Output : Steam

Rated evaporation : 0.75T/h

Usage : The Food Industry

Input power : 540KW

Contact Now

Large Electric Steam Boiler For The Food Industry

Product introduction

  • The product adopts independent body and electric control cabinet to extend the service life, easy to install and maintain.

  • The thermal efficiency can reach 99%, energy saving and emission reduction, and meet the requirements of environmental protection.

  • The normal service life of the electric heating pipe is about 20,000 hours, and the quality is absolutely guaranteed.

  • All electrical components are first-line brand and have CE or CCC or UL certification mark.

  • Each set of heating components included in the boiler is equipped with a cluster flange connection, which is extremely convenient to replace.

  • Simple operation, adopt PLC control system, complete control function and high degree of automation.

Parameter

Type WDR0.75 WDR1 WDR1.5 WDR2 WDR3 WDR4
Project Unit
Rated evaporation t/h 0.75 1 1.5 2 3 4
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 184/193 184/193 184/193 184/193 184/193 184/193
Input Power KW 540 720 1080 1440 2160 2880
Input current A 810 1080 1620 2160 3240 4320
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 36×15 36×20 36×30 36×40 36×60 36×80
Dimension
a Main steam valve diameter DN 40 40 65 65 80 100
b Safety valve diameter DN 2×40 2×40 2×40 2×40 2×40 2×50
c Inlet diamater DN 25 25 25 25 40 40
d Blowoff Valve diameter DN 40 40 40 40 40 40
Overall size L mm 2800 2950 3450 3500 3950 4100
L1 mm 2400 2500 3050 2880 3200 3550
W mm 1800 1900 2180 2000 2100 2300
W1 mm 1550 1600 1430 1880 1980 2120
H mm 1550 1600 2100 2500 2650 2980
H1 mm 1300 1350 1850 1900 2100 2200
Electrical control cabinet size ALength mm 1200 1200 1500 2200 2000(2) 2200(2)
BWidth mm 500 600 600 700 700 700
CHight mm 1800 1800 2000 2000 2200 2200
Weight T 1.6/2.0 1.8/2.2 2.2/2.7 2.8/3.3 3.5/4.1 4.5/5.2

Advantage

1 . Horizontal structure


2 . Furnace electric control cabinet separation method


3 . Domestic and international high-quality electric heating tube


4 . PLC control system


5 . Fully automatic control


6 . Run quietly and clean

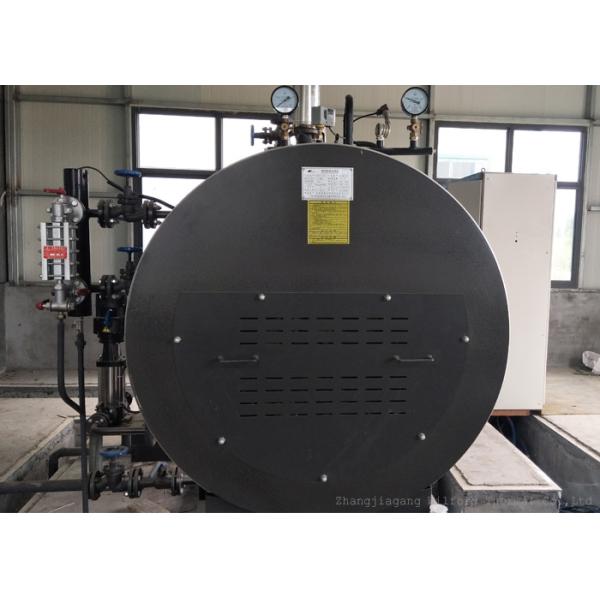

Product picture

Large Electric Steam Boiler Noiseless Running Energy Saving Environmental Friendly

Project case diagram

Large Electric Steam Boiler Noiseless Running Energy Saving Environmental Friendly
